When designing a building, one of the most important decisions is choosing the right structural system. A structural system is the framework that supports the building, ensuring it remains safe and stable. The choice of system depends on factors like the building’s size, purpose, and location.
Working with an experienced structural engineer can help you choose a system that fits your building type, site conditions, budget, and safety requirements. In areas with specific code or environmental factors, such as Colorado, consulting a Structural Engineer in Denver can provide local guidance while still supporting the broader design process. Meanwhile, property owners in Arizona may benefit from working with professionals experienced in structural engineering who can help optimize material selection, energy efficiency, and long-term sustainability while addressing the unique challenges of desert climates. Whether you need a residential house plan or are starting a commercial development, understanding structural systems helps you make better design decisions from the start.

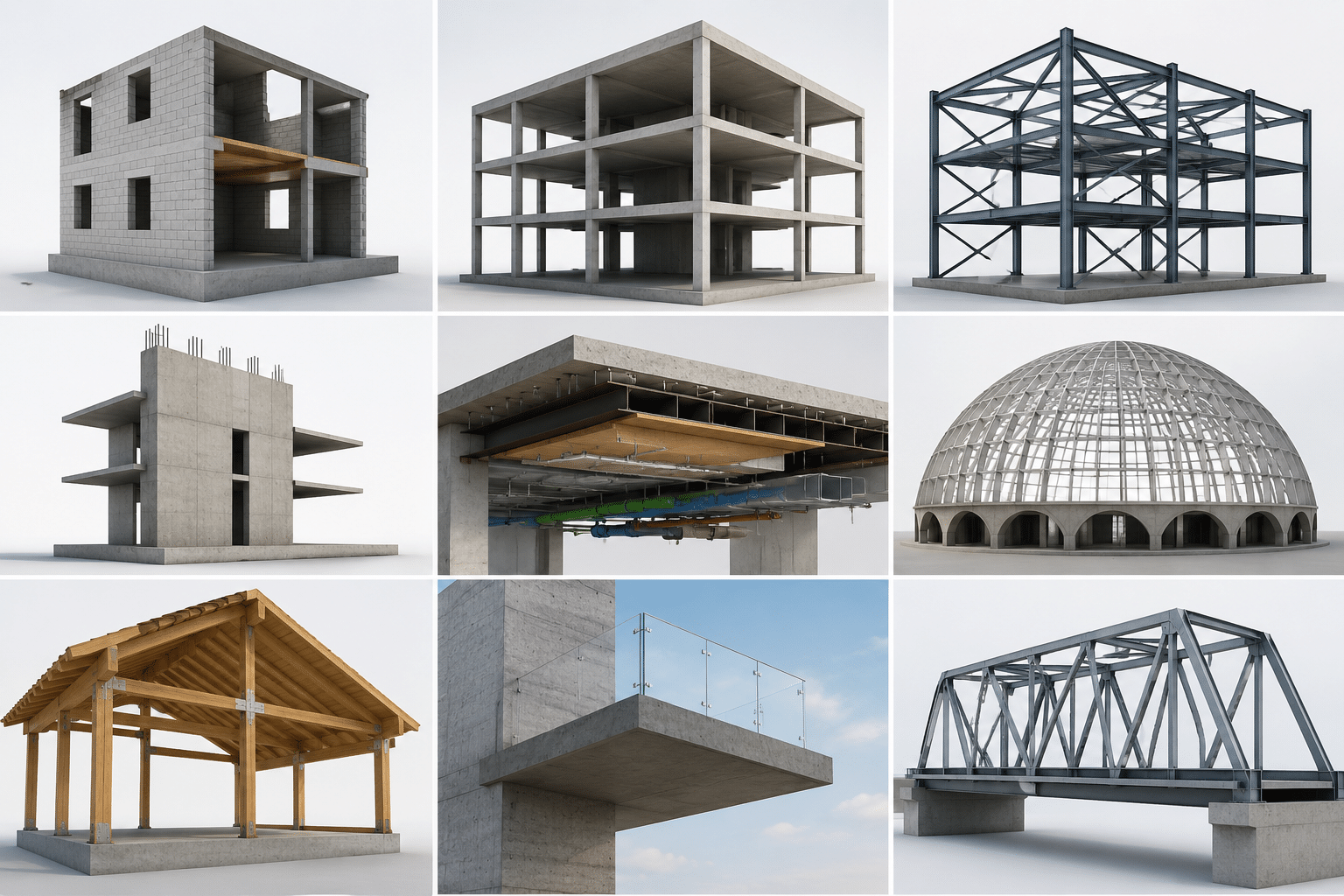

1. Load-Bearing Wall System
The load-bearing wall system is one of the simplest and oldest types of structural systems. In this system, the walls support the weight of the structure above them. The walls transfer the weight of the roof, floors, and other parts of the building to the foundation. This system is typically used in smaller buildings, like houses and low-rise buildings.
Advantages:
- Simple and cost-effective.
- Works well for small buildings.
Disadvantages:
- Limited space for big windows or openings.
- Not ideal for tall buildings.
2. Frame Structure System
In a frame structure system, the weight of the building is carried by columns, beams, and slabs. The framework of beams and columns transfers the weight to the foundation. This system is commonly used for medium to high-rise buildings because it allows for more flexibility in design.
Advantages:
- Ideal for taller buildings.
- Allows for large openings and flexible designs.
- Can support heavier loads.
Disadvantages:
- Needs more materials.
- More complex to design and build.
3. Braced Frame System
A braced frame system is similar to a frame structure, but it includes diagonal braces to resist lateral forces like wind and earthquakes. These braces help keep the building steady and reduce any swaying. This system is useful in areas with high winds or earthquake risks.
Advantages:
- Offers extra stability against wind and seismic forces.
- Reduces building sway.
Disadvantages:
- Requires extra space for the braces.
- Limits design flexibility inside the building.
4. Shear Wall System
Shear walls are vertical walls that help resist lateral forces, like wind or earthquakes. These walls are placed strategically throughout the building to prevent it from swaying. Shear walls are often used in tall buildings to ensure stability against forces that push the building sideways.
Advantages:
- Strong resistance to lateral forces.
- Reduces the need for additional supports.
Disadvantages:
- Limits interior design flexibility.
- May require thicker walls for strength.
5. Suspended Floor System
In a suspended floor system, floors are supported by beams that hang from the building’s structure. This system is used in multi-story buildings where floors need to be raised above the ground or foundation level. It is common in office buildings, malls, and apartment complexes.
Advantages:
- Allows easy installation of utilities under the floor.
- Ideal for multi-story buildings.
Disadvantages:
- More complex and expensive to build.
- Requires careful coordination for utilities.
6. Domes and Arches
Domes and arches are used in buildings that need large, open spaces without any internal supports. These structures rely on compression to distribute weight evenly, creating a strong and stable design. Domes and arches are often used in churches, sports stadiums, and other monumental buildings.
Advantages:
- Creates large open spaces without internal supports.
- Durable and capable of carrying heavy loads.
Disadvantages:
- Requires advanced engineering and design.
- More expensive and complex to build.
7. Post and Beam System
The post and beam system uses vertical posts (columns) and horizontal beams to support the structure. This system is commonly used in wooden buildings but can also be made from steel or concrete. The posts support the weight of the roof and transfer it to the foundation.
Advantages:
- Simple and flexible design.
- Works well for small buildings.
Disadvantages:
- Limited capacity for larger, taller structures.
- Requires careful spacing of columns for stability.
8. Cantilever System
A cantilever system involves structures that are supported at one end and extend outward with no support at the other end. This system is often used for bridges, balconies, and overhangs. It is also popular in modern architectural designs for creating dramatic effects.
Advantages:
- Allows unique and creative designs.
- Ideal for overhangs and balconies.
Disadvantages:
- Structurally challenging and expensive.
- Requires careful engineering to ensure stability.
9. Truss System
A truss system uses a triangular framework of beams and joints to create a stable structure. Trusses are commonly used for roofs, bridges, and floors, as they can span large distances without needing extra support in the middle.
Advantages:
- Strong and efficient for long spans.
- Can carry heavy loads with less material.
Disadvantages:
- Requires precise design and calculations.
- Not ideal for buildings with complex shapes.
Final Thoughts
Choosing the right structural system for your building is essential to ensure safety, functionality, and cost-effectiveness. The type of system you select will depend on factors such as the building’s size, the loads it needs to support, and the overall home design goals. From traditional systems like load-bearing walls to more advanced systems like trusses and cantilevers, each option comes with its unique benefits and limitations.
Understanding these systems can help you work with your architect and structural engineer to choose the best option for your project. Sumer Innovations connects property owners, developers, and design professionals with experienced engineers and consultants who can help guide projects from concept through construction. Take the first step towards a successful project, schedule your consultation today!
FAQs
What is the most common structural system used in buildings?
Most residential and commercial buildings use either load-bearing wall systems or frame structure systems depending on size and design requirements.
Which structural system is best for high-rise buildings?
Frame structure systems, shear wall systems, and braced frame systems are commonly used in high-rise construction because they provide strength and stability.
How do engineers choose a structural system?
Engineers evaluate building height, loads, site conditions, budget, and local building codes before selecting a structural system.
What is the difference between a load-bearing wall and a frame structure?
Load-bearing walls carry building loads directly through walls, while frame structures transfer loads through beams and columns.
Why are structural systems important in building design?
Structural systems ensure safety, stability, durability, and efficient load transfer throughout the building.
