In Structural Engineering, slabs are flat, horizontal parts that form the floors and ceilings. They help spread the weight of people, furniture, and other loads across the building. There are two common types of slabs:
- One-way slabs and
- Two-way slabs.
At first, they might look the same, but they work in different ways depending on how they’re supported and how big the space is. Knowing the difference is important when planning a strong and safe structure.
In this blog, we’ll explain the main differences between one-way and two-way slabs:
What Is a One-Way Slab?
A one-way slab is a type of slab that primarily transfers loads in one direction. This occurs when the slab is supported by beams or walls on two opposite sides only. Due to this support configuration, the slab bends and carries the load in a single direction, perpendicular to the supports.
Key Characteristics:
- Support: Supported on two opposite sides.
- Load Distribution: Load is transferred in one direction.
- Reinforcement: Main reinforcement bars are placed in the direction perpendicular to the supports (shorter span), and distribution bars are placed in the other direction.
- Slab Ratio: Typically used when the longer span is more than twice the shorter span (L_long / L_short > 2).
- Applications: Commonly used in corridors, narrow rooms, footpaths, and pavements.
Pros:
- Simple to design and build.
- Requires less reinforcement in total.
- Cost-effective for narrow spans.
Cons:
- Limited to spaces with larger length-to-width ratios.
- Less structurally efficient for square or large open areas.
Knowing about one-way slabs is important for designing affordable and efficient structures in narrow spaces. They are simple and cost-effective but work best in long, rectangular areas, not large open spaces.
What Is a Two-Way Slab?
A two-way slab, on the other hand, is supported on all four sides. This allows the slab to bend in both directions, distributing loads across both the length and width of the slab. This type of slab is more efficient for rooms or spaces that are nearly square or not significantly longer in one direction.
Key Characteristics:
- Support: Supported on all four sides.
- Load Distribution: Load is distributed in two directions.
- Reinforcement: Reinforcement is provided in both directions—longer and shorter spans.
- Slab Ratio: Used when the longer span is less than or equal to twice the shorter span (L_long / L_short ≤ 2).
- Applications: Commonly used in residential and commercial buildings with square or nearly square rooms.
Pros:
- Better load distribution.
- More efficient in supporting loads for square layouts.
- Provides structural stability with less deflection.
Cons:
- Slightly more costly due to additional reinforcement.
- More complex to design, especially at slab-column junctions.
Understanding the two-way slab helps in designing stronger structures, especially for square or nearly square spaces. Although it’s more efficient, it can cost a bit more and be harder to design.

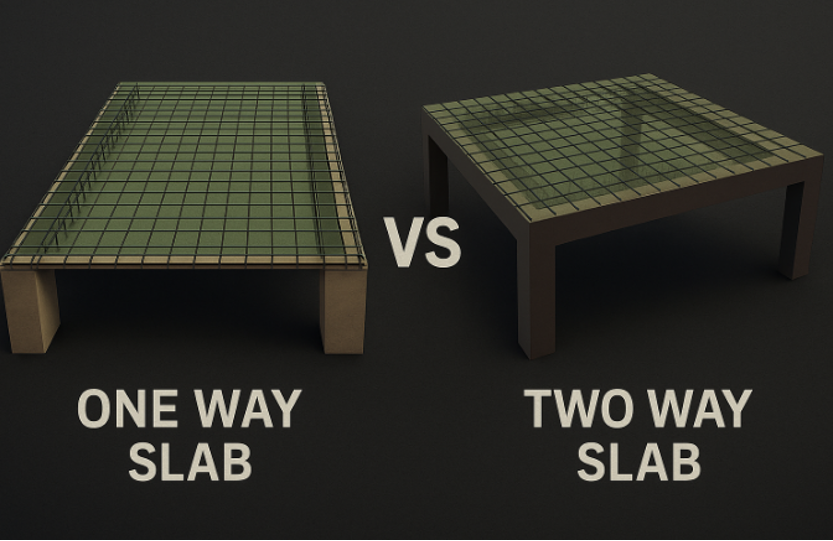

Differences Between One-Way and Two-Way Slabs
One-way and two-way slabs are both used in construction, but they work differently in how they spread the load and how they are supported. Understanding these differences will help you choose the right type for your project. Here is a table below to show the key differences.
| Feature | One-Way Slab | Two-Way Slab |
| Load Transfer | In one direction | In two directions |
| Support Sides | Two opposite sides | All four sides |
| Reinforcement Direction | Mainly in one direction | In both directions |
| Span Ratio | L_long / L_short > 2 | L_long / L_short ≤ 2 |
| Bending Direction | Unidirectional | Bidirectional |
| Deflection | More deflection in the unsupported direction | Less deflection due to dual support |
| Design Simplicity | Easier to design and construct | More complex to design |
| Cost | Generally less expensive | Slightly more expensive due to extra reinforcement |
| Common Use | Hallways, footpaths, narrow rooms | Square rooms, slabs with column grids |
Choosing between a one-way and two-way slab depends on the size and shape of the space, as well as the load requirements. By understanding the differences, you can make a more informed decision for your construction project.
Conclusion
Understanding the difference between one-way and two-way slabs is essential in designing efficient, safe, and cost-effective buildings. Each type has its own advantages and ideal use cases. One-way slabs are better suited for simple, narrow structures, while two-way slabs offer superior performance in square or large open areas.
By knowing when and where to use each type, Structural Engineers in Salt Lake City, Utah can optimize the design and ensure durability and safety in construction projects.
